Fujikura 90R Mass Fusion Splicers

Fujikura is the world’s best selling brand of fusion¬†splicers.

The current line up of fusion splicers are renowned for robust design, ease of use and high performance.

Fibernet is the exclusive distributor of Fujikura Telecom’s splicers in Israel and the only local a service center approved by Fujikura for all fusion splicers legacy types.

In previous mass fusion splicer models, the v-grooves could become dirty over time due to debris and glass deposits from splicing accumulating in the v-grooves. Which in turn, could lead to fibre offsets and high losses if they were not regularly cleaned which added to the overall process time.

The 90R12 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R12 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity.

In addition, the new V-groove design enables splicing of both conventional type 12-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers.  The 90R12 can also splice single fibers if required.

The 90R16 comes with a first of its kind, innovative user replaceable V-groove assembly which makes this issue a thing of the past and is supplied as standard equipment with the 90R16 kit. This new V-groove assembly can be quickly and easily fitted in the field, minimizing downtime and maximising productivity.

In addition, the new V-groove design enables splicing of both conventional type 16-fiber encapsulated ribbon and SWR (Spider Web Ribbon) whilst also accommodating 250um and 200um pitch fibers.  The 90R16 can also splice single fibers if required.

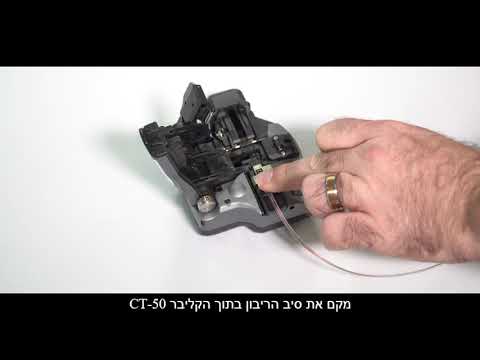

Overall working time has been significantly reduced against the previous model (70R+). This has been achieved through a combination of improvements; including the replaceable v-grooves, reaction time of the automated wind protectors and automated heater, a 5-inch LCD touch screen whilst also making use of Active Blade Management Technology, which now can connect to two CT50 cleavers simultaneously.
